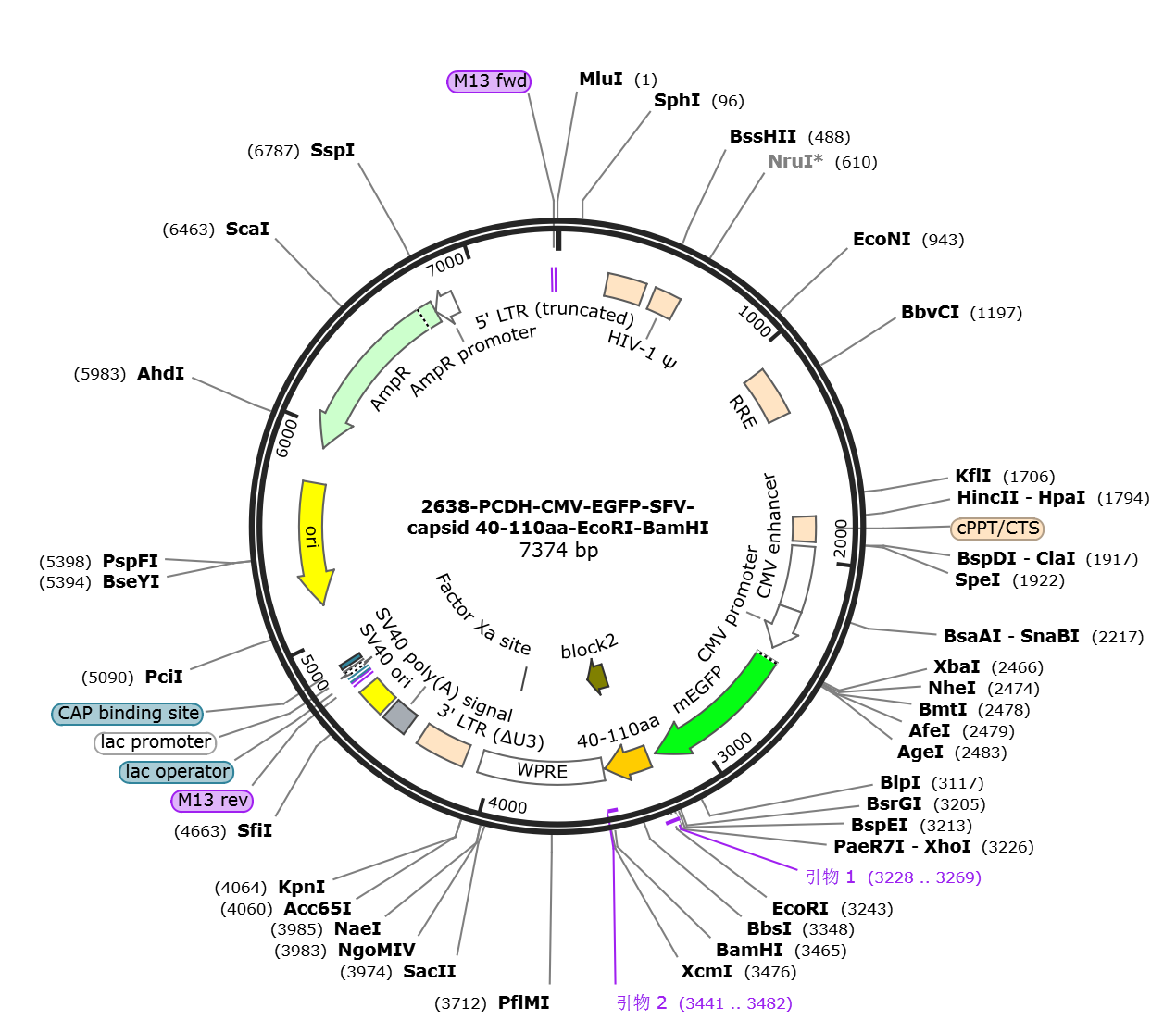

pCDH-CMV-EGFP-SFV capsid-40-110aa

LOCUS       pCDH-CMV-EGFP-SFV capsid-40-110aa            7374 bp DNA     circular SYN 25-SEP-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7374)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7374
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3212
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=mEGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     3228..3269
                     /label=引物 1
     CDS             3249..3461
                     /codon_start=1
                     /label=40-110aa
                     /translation="QQMQQLISAVNALTMRQNAIAPARPPKPKKKKTTKPKPKTQPKKI
                     NGKTQQQKKKDKQADKKKKKPGKRER"
     CDS             3327..3461
                     /codon_start=1
                     /label=block2
                     /translation="KPKKKKTTKPKPKTQPKKINGKTQQQKKKDKQADKKKKKPGKRER
                     "
     primer_bind     complement(3441..3482)
                     /label=引物 2
     misc_feature    3471..4058
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(3942..3953)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4131..4364
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4436..4557
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      4576..4711
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4749..4765)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4773..4789
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4797..4827)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4842..4863
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5151..5739)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5910..6770)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6771..6875)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7349..7365
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggagctgt
     2521 tcaccggggt ggtgcccatc ctggtcgagc tggacggcga cgtaaacggc cacaagttca
     2581 gcgtgtccgg cgagggcgag ggcgatgcca cctacggcaa gctgaccctg aagttcatct
     2641 gcaccaccgg caagctgccc gtgccctggc ccaccctcgt gaccaccctg acctacggcg
     2701 tgcagtgctt cagccgctac cccgaccaca tgaagcagca cgacttcttc aagtccgcca
     2761 tgcccgaagg ctacgtccag gagcgcacca tcttcttcaa ggacgacggc aactacaaga
     2821 cccgcgccga ggtgaagttc gagggcgaca ccctggtgaa ccgcatcgag ctgaagggca
     2881 tcgacttcaa ggaggacggc aacatcctgg ggcacaagct ggagtacaac tacaacagcc
     2941 acaacgtcta tatcatggcc gacaagcaga agaacggcat caaggtgaac ttcaagatcc
     3001 gccacaacat cgaggacggc agcgtgcagc tcgccgacca ctaccagcag aacaccccca
     3061 tcggcgacgg ccccgtgctg ctgcccgaca accactacct gagcacccag tccaagctga
     3121 gcaaagaccc caacgagaag cgcgatcaca tggtcctgct ggagttcgtg accgccgccg
     3181 ggatcactct cggcatggac gagctgtaca agtccggact cagatctcga gctcaagctt
     3241 cggaattcca gcagatgcag caactcatca gcgccgtaaa tgcgctgaca atgagacaga
     3301 acgcaattgc tcctgctagg cctcccaaac caaagaagaa gaagacaacc aaaccaaagc
     3361 cgaaaacgca gcccaagaag atcaacggaa aaacgcagca gcaaaagaag aaagacaagc
     3421 aagccgacaa gaagaagaag aaacccggaa aaagagaaag atagggatcc aatcaacctc
     3481 tggattacaa aatttgtgaa agattgactg gtattcttaa ctatgttgct ccttttacgc
     3541 tatgtggata cgctgcttta atgcctttgt atcatgctat tgcttcccgt atggctttca
     3601 ttttctcctc cttgtataaa tcctggttgc tgtctcttta tgaggagttg tggcccgttg
     3661 tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc aacccccact ggttggggca
     3721 ttgccaccac ctgtcagctc ctttccggga ctttcgcttt ccccctccct attgccacgg
     3781 cggaactcat cgccgcctgc cttgcccgct gctggacagg ggctcggctg ttgggcactg
     3841 acaattccgt ggtgttgtcg gggaagctga cgtcctttcc atggctgctc gcctgtgttg
     3901 ccacctggat tctgcgcggg acgtccttct gctacgtccc ttcggccctc aatccagcgg
     3961 accttccttc ccgcggcctg ctgccggctc tgcggcctct tccgcgtctc cgccttcgcc
     4021 ctcagacgag tcggatctcc ctttggccgc ctccccgccg gtacctttaa gaccaatgac
     4081 ttacaaggca gctgtagatc ttagccactt tttaaaagaa aaggggggac tggaagggct
     4141 aattcactcc caacgaaaat aagatctgct ttttgcttgt actgggtctc tctggttaga
     4201 ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata
     4261 aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta
     4321 gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtagta gttcatgtca
     4381 tcttattatt cagtatttat aacttgcaaa gaaatgaata tcagagagtg agaggaactt
     4441 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     4501 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     4561 tgtctggctc tagctatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
     4621 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc
     4681 cagaagtagt gaggaggctt ttttggaggc ctagactttt gcagagacgg cccaaattcg
     4741 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     4801 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     4861 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     4921 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     4981 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     5041 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     5101 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     5161 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     5221 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     5281 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     5341 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     5401 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     5461 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     5521 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     5581 tacactagaa ggacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     5641 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     5701 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     5761 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     5821 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     5881 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     5941 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     6001 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     6061 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     6121 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     6181 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     6241 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     6301 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     6361 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     6421 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     6481 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     6541 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     6601 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     6661 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     6721 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     6781 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     6841 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     6901 gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg
     6961 ccctttcgtc tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg
     7021 gagacggtca cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg
     7081 tcagcgggtg ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta
     7141 ctgagagtgc accatatgcg gtgtgaaata ccgcacagat gcgtaaggag aaaataccgc
     7201 atcaggcgcc attcgccatt caggctgcgc aactgttggg aagggcgatc ggtgcgggcc
     7261 tcttcgctat tacgccagct ggcgaaaggg ggatgtgctg caaggcgatt aagttgggta
     7321 acgccagggt tttcccagtc acgacgttgt aaaacgacgg ccagtgccaa gctg
//
